Jones 29 Plus LWB - The Build

Last week, I posted some observations from riding a Jones 29 Plus LWB over the past four months on my favorite single track in the Black Hills of South Dakota. In response to several inquiries, I have listed the build specs for this bike, along with a few notes on the selection and build process.

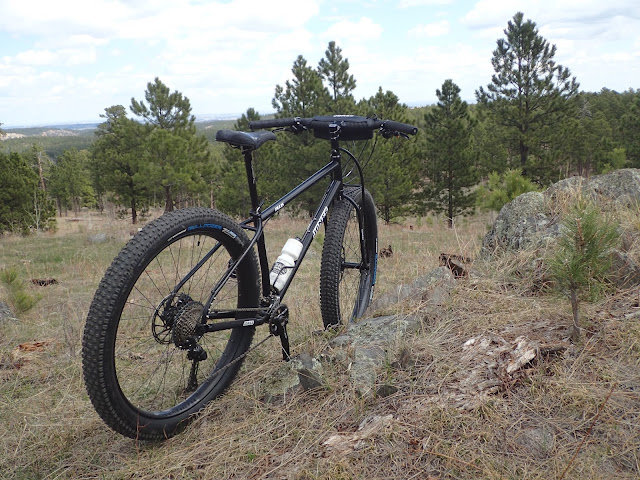

Now that's a meaty bike ready to take on the Centennial Trail, and any Bulldog along the way.
My basic design criteria for the Jones 29 Plus LWB was to build an every day, every trail mountain bike to confidently and comfortably ride single track on everything from short local jaunts to multi-day expeditions. In concept, I envisioned a trail companion to my Black Mountain Cycles Monster Cross that handles all roads. More specifically, I wanted a mountain bike to cruise around with friends, hack around some local races, explore remote back trails in the Black Hills, bike pack on trails overnight and longer, and maybe someday take on the Tour Divide and the Trans America Trail. Yeah, that's a tall order, but this bike is designed to handle it.

Once mentally committed to the Jones 29 Plus LWB, I started the process of selecting components to build it up myself, as I had done for my past several bikes. Upon realizing the extent of truly unconventional things about this bike, however, I decided against buying just the frame set. Rather, I decided to draw from the deep well of knowledge of the man himself, Jeff Jones.

Surveying the scene above Coon Hollow on the Storm Mountain trails.
For Jeff to build up your Jones bike, he asks to talk with you to get everything just right. My two hour conversation with Jeff was amazing. He first sought to learn my riding history, preferences and aspirations. With that basis, he launched into a detailed discussion, analysis and recommendation first on the style, size and material of the frame set and then for every component. Every single one.

The experience of going through this process with Jeff was remarkable. No detail was too small. Jeff covered everything, after comprehensively expressing every pro and every con. For the most part, I followed his recommendations. For example, he eventually talked me out of the new Paul Components Klamper disc brakes, citing too little improvement at too great a cost. In the end, the rest of the build ultimately looks much like I envisioned beforehand. Here it is.

After the build, Jeff Jones sent me this photo, which looks practically catalogue ready. Yes, that's my bike.

Frame Set
Frame - Jones Steel 29 Plus LWB, Medium (black)
Fork - Jones Steel Truss (black)
Headset - Jones Sealed Cartridge Bearing H-Set (black)
Seat Post - Thomson Elite Zero-Offset (black)
Seat Post Clamp - Paul Quick Release (black)

Rear Wheel  (hand built)
Hub - Shimano XT Boost with CL Adaptor (black)
Rim - WTB Scraper i45 29er (black)
Rim Tape - tubeless tape
Spokes - DT Swiss Competition (black)
Nipples - DT Brass (silver)
Thru-Axle - Jones TA bolt
Tire - Vee Tire Bulldozer 29x3.25
Tube - WTB Tubeless valves, Stan's Sealant

Front Wheel  (hand built)
Hub - Jones 150-F (black)
Rim - WTB Scraper i45 29er (black)
Rim Tape - tubeless tape
Spokes - DT Swiss Competition (black)
Nipples - DT Brass (silver)
Thru-Axle - Jones TA bolt
Tire - Vee Tire Bulldozer 29x3.25
Tube - WTB Tubeless valves, Stan's Sealant

Stem/Bar
Stem - Thomson X4, 70x10 (black)
Spacers - Aluminum, 50 mm (black)
Handle Bar - Jones Butted Aluminum Loop H-Bar 710 (black)
Grips - Jones Kraton H-Grips for 710 mm H-Bar (black)
Tape - Jones B-Tape, rear crossbar (black)

Brakes
Front Brake - Avid BB7 200 mm Rotor
Rear Brake - Avid BB7 180 mm Rotor
Brake Levers - Avid Speed Dial 7
Brake Cables - Jagwire Stainless Slick
Cable Housing - Jagwire Ripcord, compressionless (black)

Drivetrain
Crankset - Shimano M-8000 170 mm, Boost, 34/24
Bottom Bracket - Shimano MT-800
Cassette - Shimano XT 11 Speed, 11-42
Front Derailleur - Shimano XT Down Swing, top pull
Rear Derailleur - Shimano XT Shadow+ SGS
Shift Levers - Shimano XT Rapid Fire, 11 Speed
Chain - Shimano 11 Speed
Cable & Housing - Shimano SP-51
Chain Stay Protector - Jones
Pedals - Time ATAC MX-4

Accessories
Frame Pack - Revelate Designs for Medium Jones 29 Plus LWB (black)
Handle Bar Pack - Jones H-Bar Pack (black)
Truss Fork Packs - Revelate Designs for Jones Truss Fork (black)
Spare Derailleur Hanger - Jones DMD Hanger for Thru-Axle
Saddle - WTB Speed Comp (black)
Extra - Jones Tumbler (stainless steel)

Bike Build
Build, tune, test ride, tune, test, check, clean, pack for shipping
